Environmental Testing Equipment Series

Temperature  and  Humidity  Test Chamber

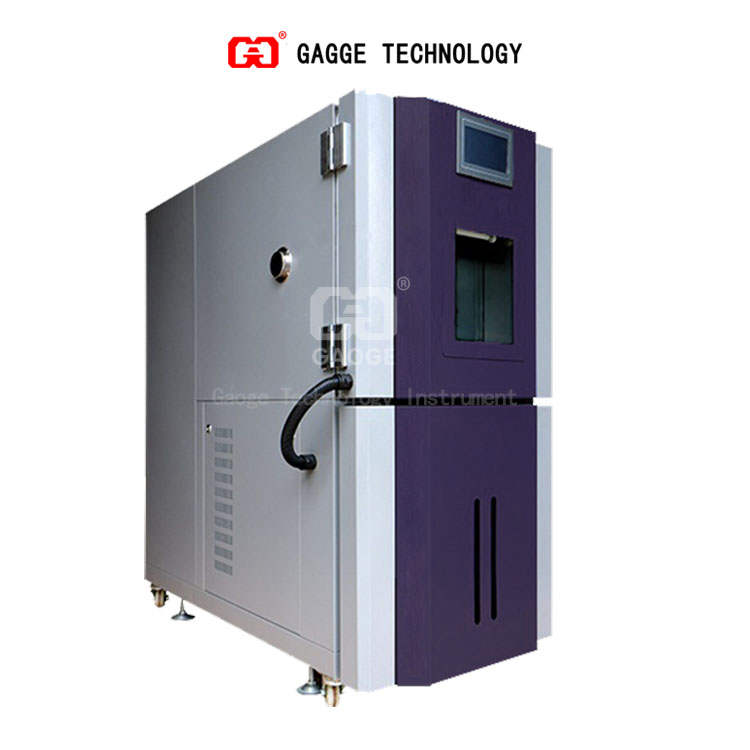

Temperature and Humidity Test Chamber



Place of Origin: china
Brand Name: GAOGE TECH INSTRUMENT CO,.LTD
Standards: GB/T2423
Model Number: GAG-E201
  • Product Introduction



 Model GAG-E201-150 GAG-E201-225 GAG-E201-408
 Internal Dimension (W*H*D)500*500*600mm 500*750*600mm 500*850*800mm
 External Dimension (sus Type) (W*H*D) 950*1400*1100mm 1100*1500*1100mm 1100*1670*1200mm
 External Dimension (paint Type) (W*H*D) 700*1400*1100mm 800*1500*1100mm 800*1670*1200mm
 Temperature(℃)-20/-40/-70
 Total Power (KW) 4.5/4.5/6.5 5/5/6.5 9.5/9.5/11.6
 Maximum Current (A) 25/25/32 32/32/40 25/32/40
 Voltage (A)  Sigle Phase 220V Three Phase 380V
Performane Temp.& Humi. Adjust Way Balanced temperature and humidity control (BTHC) PID intelligent adjustment
 Temperature Range -20℃,-40℃,-70℃~150℃
 Temperature Accuracy 0.01℃
 Temperature Tolerance ≤±1.0℃或±2.0℃
 Temperature Fluctuations ≤±0.5℃ (without load and temperature stable)
 Temperature Uniformity ≤1.5℃    (without loading), 50mm≤SENSOR
 Humidity Range 20%-98%RH
 Humidity Accuracy 0.1%RH
 Humidity Tolerance 1 、≥75%RH:≤±3%RH ;2 、≤75%RH :≤±6%RH
 Humidity  Fluctuations ≤±2.5%RH
 Heating Rate 3℃/min in average
 Cooling Rate 1℃/min in average
 Regulator Cooling Method Single stage compression, two stage compression

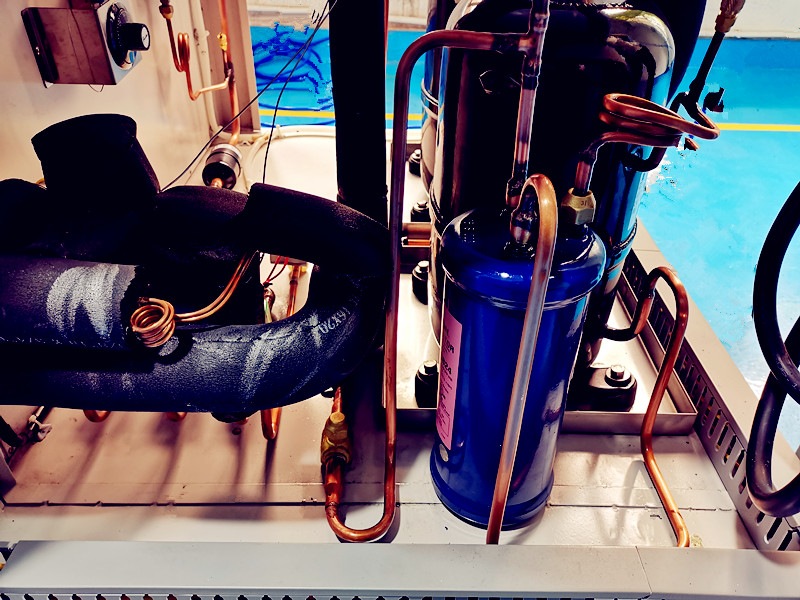

 Refrigerator Hermertically Sealed France Tecumseh Compressor or Semi-hermetic BOcK Compressor
 Cooling Method Air-cooled
 Controller Operation Panel Programmable LCD Touch Screen
 Running Mode Fix Running, Pattern Running
 Program Memory Capacity 120 Group Programmable, Max 100 Section Each
 Output Rs-232 (USB,Optional)
 Water Sup Water Supply Circulating Water
 Water Tank Capacity Chamber Internal Capacity < 800L: 25L X 1pc
 Chamber Internal Capacity > 800L: 25LX 2pc
